Micro PCB Connectors

A "PCB" or Printed Circuit Board connects electrical components on a conductive track or between pads on the board. Some devices hold more than one PCB and will utilise a variety of PCB to PCB connectors to build a connection between the boards. Designed to connect printed circuit boards in a variety of settings, high voltage miniature PCB connectors securely transmit signal and power between boards.

Performance of Micro PCB Connectors

• Contact Pitch: 0.050˝ (1.27 mm)

• TEMPERATURE RANGES:

• - STANDARD    -55°C / +150°C

• - HIGH TEMP    -55°C / +200°C

• Random vibration: Power spectrum density 0.4G²/Hz root mean square value of total acceleration 23.1G

• Shock: 735m/s²

Contact arrangements of Micro PCB Connectors

• Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts

• Plastic shell: 9, 15, 21,25,31,37, 51 contacts

Introduction of Micro PCB Connectors

• Series: Micro D Connector

• Terminal Mounting: PCB Type Including Straight to PCB and 90°angle to PCB type

PCB Tail Length: Standard 3mm
PCB Layout: 1.27*2.54mm & 2.54mm*2.54mm
Contacts: Twist pin contacts, high density interconnection, Beryllium  copper (BeCu), gold over nickel plating
The thickness of Gold plating: ≥1.27micron
TWIST PIN: Male contact, fitted to plug connector.
Socket: Female contact, fitted to socket connector (also known as socket).
Insulator: 20% GFPPS (20% glass filled polyphenylene sulfide)
Insert: Moulded insulation housing, separating each connection.
Interfacial Seal: Fitted to socket connector only
Shell: Connector metal body plated nickel or cadmium.
Jackscrew: High or low profile, hexagonal socket or slotted head.
Jackpot: Mates with jackscrew.
LCP: Liquid Crystal Polymer.
Potting: Epoxy compound used as an encapsulant.

Standard connector: Manufactured to the standard dimensions and specifications.
Special connector: A standard connector modified to meet specific requirements.
Custom made connector: Designed to meet specific customer requirements.
PCB connector: widely apply for the different industry and application.

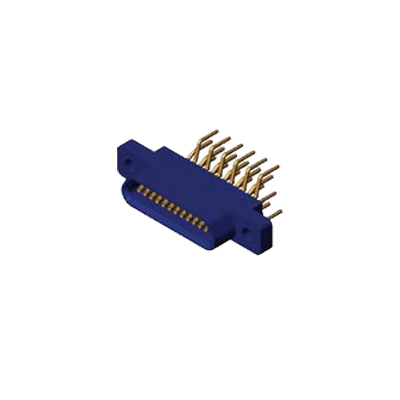

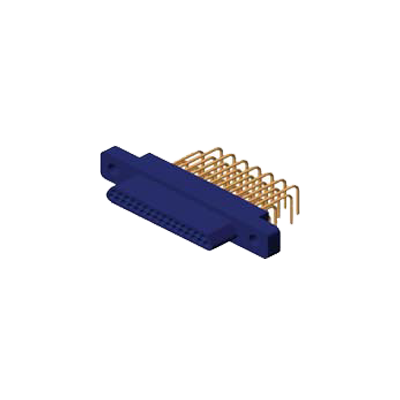

Right Angle PCB connector: Board Right Angle connector and Condensed Board Right Angle connector.
Straight PCB connector: Board Straight connector.
