Inflow Control Valve Reliability in HPHT Wells

Inflow Control Valve (ICV) Reliability Challenges under HPHT and Corrosive Environments — A Connector-Centric Perspective

When drilling a new well encounters an unexpected Gas-Water Contact (GWC), the deployment of Interval Control Valves (ICVs) can accelerate the implementation of revised deepwater completion strategies. Installed along the production tubing, ICVs allow operators to remotely regulate or shut off flow from specific zones without costly downhole interventions, enabling zonal isolation and controlled production.

ICVs do not operate as standalone mechanical devices. They are key actuators within an Intelligent Completion System, where their performance depends on the coordination between real-time downhole monitoring and surface control commands.

Under high temperature, high pressure, and corrosive conditions, the long-term stability of ICV systems is influenced by multiple interacting factors, including:

· Mechanical and erosion-related damage

· Control line and power transmission failure

· Seal and integrity failure

· Sensor and electronic component malfunction

Pressure fluctuations can accelerate the development of micro-leakage at sealing interfaces, while the combined effects of corrosion and stress degrade material integrity over time, increasing the risk of system-level failure.

From a system perspective, failures are not uniformly distributed. Instead, they tend to concentrate at multi-physics coupling interfaces. Connectors, which are simultaneously exposed to mechanical loads, pressure differentials, and corrosive media, represent one of these critical points. Their sealing design and material performance have a strong influence on overall system reliability.

This article focuses on two primary design drivers: pressure balancing and material corrosion resistance.

1. Pressure Balancing

· Glass-to-Metal Seals (GTMS)

At the contact pin interface, specialized glass is fused to metal at high temperature. By matching the coefficients of thermal expansion, a chemical bond is formed between the materials.

Advantage: GTMS provides a rigid and hermetic barrier. Even if the primary pressure compensation system is compromised, it can act as a secondary defense against high-pressure gas ingress into sensitive electrical components.

· Redundant Sealing Systems

A combination of dual O-rings with back-up rings is commonly used. Back-up rings, often made from PEEK, help prevent extrusion of elastomer seals under high pressure.

2. Corrosion and Chemical Resistance

Material selection is critical in environments containing H₂S, CO₂, and chlorides.

· Metal Materials — Sulfide Resistance

Conventional stainless steels may suffer from stress corrosion cracking (SCC) under high temperature and high H₂S conditions.

Preferred materials: High nickel-based alloys such as Inconel 718 or Hastelloy.

These materials form stable passive oxide layers that improve resistance to pitting and hydrogen embrittlement.

· Non-Metal Materials — RGD/AED Resistance

In high-pressure gas environments, gases can permeate into elastomer materials. During rapid decompression, internal gas expansion may cause blistering or cracking of seals (Rapid Gas Decompression / Explosive Decompression).

Recommendation: Use sealing materials qualified to standards such as NORSOK M-710, for example high-grade FFKM compounds designed for RGD resistance.

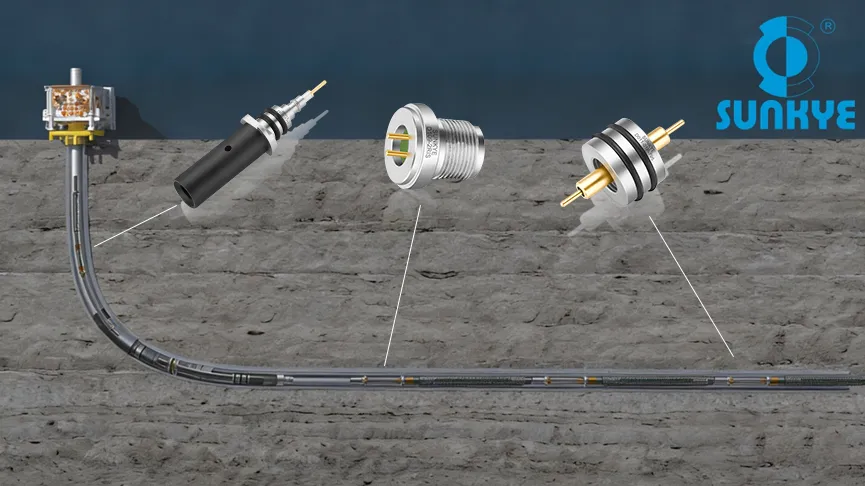

In the oil and gas sector, Sunkye provides customized connector solutions designed for harsh environments, including high-temperature, high-pressure, and hermetically sealed configurations.

Sunkye's High Temperature & High Pressure Connectors Specification :

Under HPHT and corrosive conditions, the long-term performance of ICV systems is generally influenced by how pressure management and material selection are balanced. At the connector level, improvements in pressure compensation, sealing integrity, and corrosion resistance can help reduce the likelihood of common failure modes.

As operations move toward deeper water and more complex reservoirs, these technologies continue to evolve — including more efficient pressure-balanced designs, enhanced sealing solutions, and improved material systems. Connectors, as key interface components, are increasingly being designed with a stronger focus on system-level reliability.
